DESCRIPTION
UAV Wulung dikendalikan dari jarak jauh baik secara manual maupun otomatis. Dibuat dari bahan komposit yang didukung oleh mesin tunggal tipe piston dan dilengkapi Ground Control Station tunggal sebagai pusat control. Wulung memiliki kemampuan untuk melakukan Intelligence, Surveillance, and Reconnaissance (ISR).
TECHNICAL SPESIFICATION
PERFORMANCE
| Take-Off ( Sea Level, MTOW ) | ||
|---|---|---|
| Take Off Distance | : | 350 m |
Cruise Speed ISA, 800 ft pressure altitude standard atmosphere at gross weight of 125 Kg) | ||
| Max. Cruise Speed | : | 100 KTAS |
| Operational Speed | : | 60 KTAS |
Landing Distance (ISA, Sea Level Conditions, MLW) | ||
| Landing Distance | : | 350 m |
| Maximum Endurance | : | 4 hr |
| Radius of Operation | : | 120 km |
GEOMETRI
Overall Length : 4.42 m
Overall Height : 1.48 m
Max. Fuselage Width : 0.40 m
Wing Span : 6.34 m
Wheel Base : 1.44 m
Wheel Track : 1.60 m
WEIGHT
Max. Take Off Weight(MTOW) : 125 Kg
Basic Empty Weight : 65 Kg
Max. Fuel : 32 Kg
Max. Payload : 35 Kg

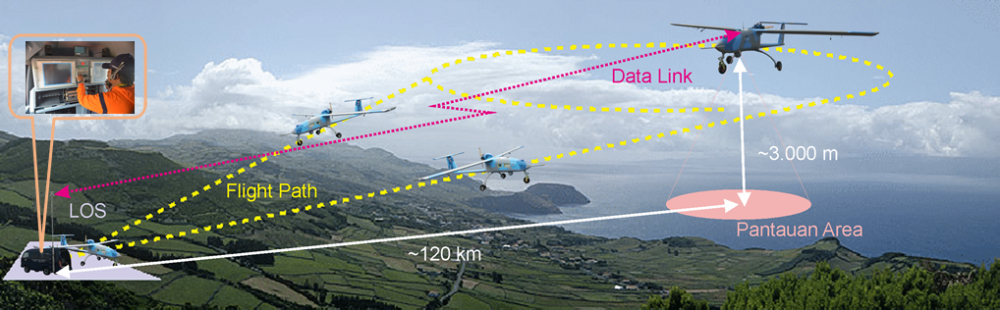

TYPICAL MISSION
